KNIGHT PANORAMIC 200
4 x 1/2.8” Progressive Scan CMOS, 5MP Sensors
KNIGHT PANORAMIC 200

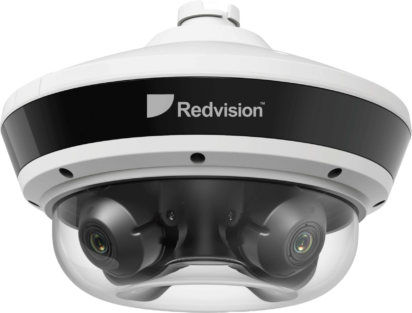

Knight Panoramic 200 Camera
The Knight Panoramic 200 sets a new benchmark in multi-sensor panoramic surveillance. Featuring four advanced 1/2.8" 5MP Super Low-Light CMOS sensors, this 4-in-one camera delivers ultra-high-definition, 360° panoramic coverage—day or night. With Power over Ethernet (PoE) for simplified installation and low power consumption, the Panoramic 200 is ideal for wide-area monitoring in demanding environments.Adaptive Infrared Illumination
Built-in IR LEDs provide up to 40 metres of infrared range, ensuring excellent night-time visibility and full-scene coverage in complete darkness. Smart IR adapts to the environment to avoid overexposure and maintain image clarity.
Motorised Zoom Lenses – Precision Coverage
Equipped with 4 independently motorised 2.7–13.5mm lenses, the Panoramic 200 allows for flexible scene configuration, enabling the user to zoom in on key areas while maintaining full situational awareness across the entire scene.
Robust Aluminium Housing
A durable IP67-rated solid aluminium housing offers reliable protection against dust, rain, and impact, making the RVK-P200-IR ideal for both indoor and outdoor installations in harsh environments.
Edge Recording – SD Storage up to 1TB
With onboard SD card storage of up to 1TB, the camera supports edge recording to safeguard footage during network interruptions. ONVIF Profile G compliance ensures seamless integration with compatible VMS platforms and NVRs, allowing automatic footage retrieval when the connection is restored.
ONVIF Compliant
ONVIF Profile S, G and T compliance offers compatibility with countless VMS platforms and NVRs. A H.265 streaming option means high-quality images at lower network bandwidth and hard-disk storage.
Additional Features
Multi-object detection, including human and vehicle, and Smart Events allow users to tailor cameras to suit each individual scene, optimising recording time for only events or information that really matters to you.
Simple Installation
All four cameras can be independently pan and tilted on a rail to ensure full coverage of the required scene is achieved.
Microphone
A built in microphone allow users to operate audio to sites at a click of a button.
Key Features
- 4 x 1/2.8” Progressive Scan CMOS, 5MP Sensors
- 4 Adjustable Lenses in One Camera
- 2.7 to 13.5mm Motorised Lenses
- PoE for Simple Plug and Play Connection
- Super Low-Light Performance
- Easy Positioning
- Cast Aluminium Body
- ONVIF Profile S, G & T Compliant
- 40m IR
- Intelligent Video Analytics
- Audio In/ Out
- Built in Microphone and Speaker
- IP67, IK10
- Built in SD slot, up to 1TB
Applications
- High-Traffic Public Spaces
- Roadways & Highway Management
- Industrial Sites & Warehouses
- Perimeter & Border Surveillance
- Critical Infrastructure Protection
- Smart Surveillance with Analytics
- Wide‑Area Surveillance in Public & Commercial Spaces
KNIGHT PANORAMIC 200
4 x 1/2.8” Progressive Scan CMOS, 5MP Sensors
| Product Code | Product Description |
|---|---|
| RVK-P200-IR | KNIGHT PANORAMIC 200, 4 x 1/2.8” CMOS, 5MP Multi-Channel Camera, 2.7 to 13.5mm Motorised Lens, 40m IR |
| Product Code | Product Description |
|---|---|

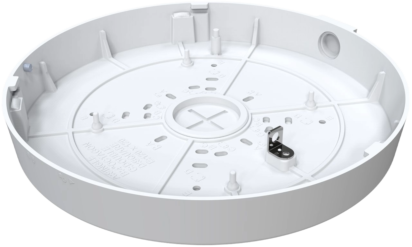

| RVK-P-JB | Junction Box for Knight Panoramic Cameras |
| Product Code | Product Description |
|---|---|

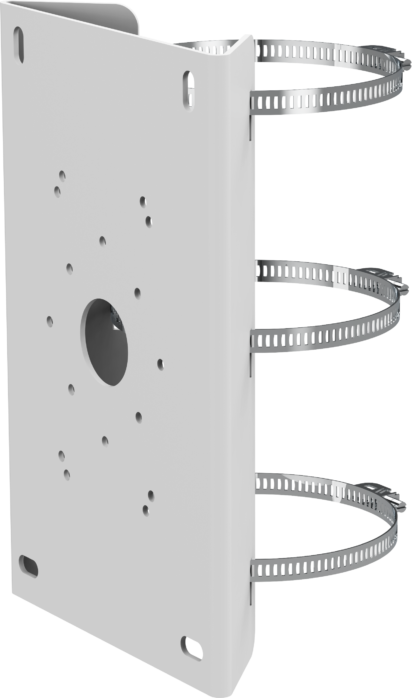

| RVK-P-POLE | Pole Clamp for Knight Panoramic Cameras |
| Product Code | Product Description |
|---|---|
| RVK-P-STANDOFF | Standoff Bracket for Knight Panoramic Cameras |
| CAMERA | |
| Image Sensor | Four off 1/2.8” Progressive Scan CMOS |
| Max. Resolution | Four off 5MP (2592 x 1944) |
| Electronic Shutter | Auto/Manual, 1/5 to 1/20,000s |
| Min. illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Day & Night | Auto (ICR) |
| IR Distance | Up to 40m |
| Pan/Tilt/Rotation Range | Pan: -180˚ to 180˚, Tilt: 0˚ to 130˚, Rotation: 0˚ to 355˚ |
| IR On/Off Control | Auto/Manual |
| LENS | |
| Lens Type | Motorised focus |
| Iris | DC- Iris |
| Focal Length | 2.7 – 13.5mm |
| F Number | F1.6 |
| Field of View | H: 95.6° to 26.9°, V: 65.4° to 20.5° |
| VIDEO | |
| Streaming Capability | 3 Streams |
| Stream1: | 2592 × 1944, 2592 × 1520, 1920 × 1080, 1280 × 720 @ 25/30fps |
| Stream2: | D1, VGA, CIF @ 25/30fps |
| Stream3: | VGA, CIF, QVGA @25/30fps |
| Bit Rate Control | CBR / VBR |
| Bit Rate | Stream1: 500 kbps to 12 Mbps Stream2: 100 kbps to 6 Mbps Stream3: 100 kbps to 3 Mbps |
| Region of Interest | Support |
| Smart Encode – Bandwidth Optimisation | Supported |
| IMAGE | |
| Image Adjustment | Brightness/ Sharpness/ Contrast/ Saturation adjustable |
| White Balance | Auto/Manual |
| Day/Night Setting | Auto, Day, Night, Time |
| White Balance | Auto/Manual |
| Day/Night Setting | Auto, Day, Night, Time |
| Noise Reduction | 2D/3D DNR |
| Wide Dynamic Range | True WDR |
| Image Enhancement | HLC, BLC, Defog |
| S/N Ratio | 55dB |
| Privacy Masking | Supports 1 to 4 channels |
| Aisle Mode | Supported |
| Mirror | Supported |
| SMART EVENT | |
| Multi-Object Detection | Face, human & vehicle detection |
| Smart Events | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, People Counting, Heat Map, Smart Motion Detection, People Counting Support alarm triggering by specified target types (human and vehicle) |
| Basic Events | Disk alarm, Network alarm, I/O alarm, Motion detection alarm, Abnormal sound detection |
| AUDIO | |
| Compression | G.711, RAW_PCM |
| Bit Rate | 64Kbps (G.711), 128Kbps (RAW_PCM) |
| NETWORK | |
| Protocols | IPv4/IPv6, RTSP/RTCP/RTP, TCP/UDP, HTTPS, DHCP, DNS, DDNS, PPPoE, UPnP, ICMP, IGMP, FTP, NTP, STMP, 802.1x, SNMP |
| Interoperability | ONVIF (Profile S, G & T), SDK, CGI |
| Streaming Method | Multicast |
| Max. User Access | 10 Users |
| Web Viewer | <IE11, Chrome, Firefox |
| Language | English, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English |
| INTERFACE | |
| Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio Interface | 1ch Input, 1ch Output |
| Built-in Microphone | Yes |
| Alarm Interface | 1ch Input, 1ch Output |
| Reset Button | Supported |
| SD Card Slot | Built-in, up to 1TB |
| ELECTRICAL & PHYSICAL | |
| Power Supply | 12VDC (-15%~+25%)/ POE+ (IEEE 802.3at) |
| Power Consumption | Max 20 W |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP67/ IK10 |
| Certifications | CE/FCC |
| Casing | Aluminium & Plastic |
| Dimensions | Φ282 × 206.3 mm (bracket not included) |
| Net Weight | 4kg (bracket not included) |
