KNIGHT EYE 40

Knight Eye 40 Turret Camera

The Knight Eye 40 camera utilises leading-edge sensor technology, with a Super low-light CMOS sensor for high-quality images in daytime or night-time settings. PoE power means simple plug and play experience, with low power consumption (8.5W, IR on). A motorised Zoom lens with Auto Focus system ensures crisp, clear images all the time. A tough, stylish housing completes the high-quality offering.

Adaptive IR Illumination

Integral IR LEDs provide up to 50m of Adaptive IR range, ensuring any night-time activity is captured in full HD with stunning image quality. The Knight Eye 40 automatically adjusts the IR intensity in proportion to zoom and scene content. The IR LEDs are fully isolated from the camera lens, meaning no glare or haze, only crystal-clear images all night long.

Motorised Zoom

A fully motorised 3.6mm ~ 11mm Smart Auto Focus lens guarantees sharp images in both day and night-time, whilst making installation setup quick and easy.

Aluminium Body

A tough, solid cast aluminium casing results in the camera being well-protected against the elements and local environment, to IP66 standard. A rugged aluminium housing secures the camera whilst keeping the premises secure.

SD Card Edge Recording

Built-in SD Card recording up to 256GB allows network edge-recording, making sure nothing is missed, even in the event of a network data outage. ONVIF Profile G compliance means the camera can work with a compatible VMS platform or NVR, to automatically interrogate and recover recorded footage, as soon as the network connection is restored.

ONVIF Compliant

ONVIF Profile S, G and T compliance offers compatibility with countless VMS platforms and NVRs. A H.265 streaming option means high-quality images at lower network bandwidth and hard-disk storage.

Additional Features

Motion Detection, Intelligent Video Analytics, Smart Encoding and Region of Interest allow users to tailor cameras to suit each individual scene, optimising recording time for only events or information that really matters to you.

Simple Installation

3D positioning allows users to find that perfect spot to view exactly what’s required.

Microphone and Speaker

A built in microphone and loudspeaker allow users to operate two way audio to sites at a click of a button.

Key Features

  • 1/1.8” Progressive Scan CMOS, 4MP Sensor
  • PoE for Simple Plug and Play Connection
  • Super Low-Light Performance
  • Motorised Zoom Lens with Smart Auto Focus
  • Easy Positioning
  • Cast Aluminium Body
  • ONVIF Profile S, G & T Compliant
  • 50m Adaptive IR Integral LEDs
  • Intelligent Video Analytics
  • Audio In/ Out
  • Built in Microphone and Speaker
  • IP66

KNIGHT EYE 40

4MP Turret Camera and Accessories

Knight Eye 40
Product Code Product Description
RVK-E40-IR KNIGHT EYE 40 1/1.8" CMOS, 4MP Eyeball Dome Camera, 3.6~11mm motorized lens, 50m IR
RVK EW JB
Product Code Product Description
RVK-E-JB Junction Box for Knight Eye Cameras
RVK POLE1
Product Code Product Description
RVK-POLE1 Pole Clamp for Knight Series Cameras
RVK STANDOFF
Product Code Product Description
RVK-STANDOFF Standoff Bracket for Knight Series Cameras - Requires Bracket Mount Adapter
RVK WALL
Product Code Product Description

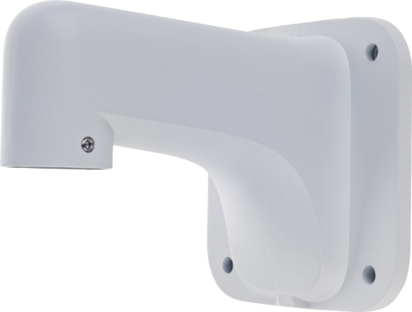

RVK-WALL Wall Bracket for Knight Series Cameras - Requires Bracket Mount Adapter
RVK E ADPT
Product Code Product Description

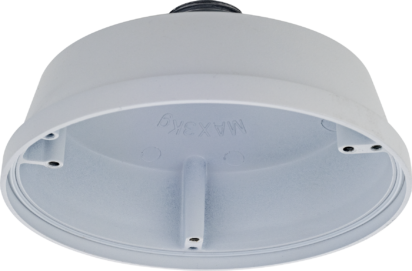

RVK-E-ADPT Knight Eye Bracket Mount Adapter - Compatible with RVK-WALL & RVK-STANDOFF
CAMERA
Image Sensor 1/1.8” Progressive Scan CMOS
Max. Resolution 4MP (2560×1440)
Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s
Min. illumination Colour: 0.001 Lux @ (F1.6, AGC ON) , B/W: 0 Lux @ (IR LED ON)
Day & Night IR cut filter
IR Distance Up to 50m
IR On/Off Control Auto/Manual
Pan/Tilt/Rotation Range Pan: 0˚ ~ 355˚, Tilt: 0˚ ~ 80˚, Rotation: 0˚ ~ 360˚
LENS
Lens Type Motorised Focus
Iris Fixed Iris
Focal Length 3.6 ~ 11 mm
F Number F1.3
Field of View H: 114.6°~48.3°, V: 59.0°~27.1°
VIDEO
Streaming Capability 3 Streams
Stream/Frame Rate Stream 1: 2560×1440, 2304×1296, 1920×1080, 1280×720 @ 25/30fps / Stream 2: D1, VGA, CIF @ 25/30fps / Stream 3: VGA, CIF, QVGA @ 25/30fps
Bit Rate Control CBR/VBR
Bit Rate Stream1: 200kbps~12Mbps
Region of Interest Off/On (8 Zone, Rectangle)
Smart Encode – Bandwidth Optimisation Supported
Image Adjustment Brightness/ Sharpness/ Contrast/ Saturation adjustable
Aisle Mode Supported
Mirror Supported
White Balance Auto/Manual
Day/Night Setting Auto, Day, Night, Time
Adaptive Illumination Supported
Noise Reduction 2D/3D DNR
Wide Dynamic Range True WDR
Image Enhancement HLC, BLC, Defog
S/N Ratio 55dB
Motion Detection Supported
Privacy Masking Supported
SMART EVENT
Multi-Object Detection Face, human & vehicle detection
Smart Events Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, People counting. Support alarm triggering by specified target types (human and vehicle)
AUDIO
Compression G.711, RAW_PCM
Bit Rate 8kbps, 16kps, 64kbps
NETWORK
Protocols IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL
Interoperability ONVIF (Profile S, G & T), SDK, CGI
Streaming Method Unicast
Max. User Access 10 Users
Web Viewer Microsoft Edge, Chrome, Firefox, Opera
Language English, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English
INTERFACE
Network Interface 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface 1ch Input, 1ch Output
Built-in Microphone Yes
Built-in Speaker Yes
Alarm Interface 1ch Input, 1ch Output
Reset Button Supported
SD Card Slot Built-in, up to 256GB
ELECTRICAL & PHYSICAL
Power Supply 12VDC (-15%~+25%)/ POE (IEEE 802.3af)
Power Consumption Max 8.5 W
Operating Temperature -40°C ~ 55°C
Operating Humidity Less than 90% RH
Ingress Protection IP66
Certifications CE/FCC
Casing Aluminium
Dimensions OD 140 × 119.2 mm
Net Weight 0.9 kg
