KNIGHT SCENE 80 PANORAMIC

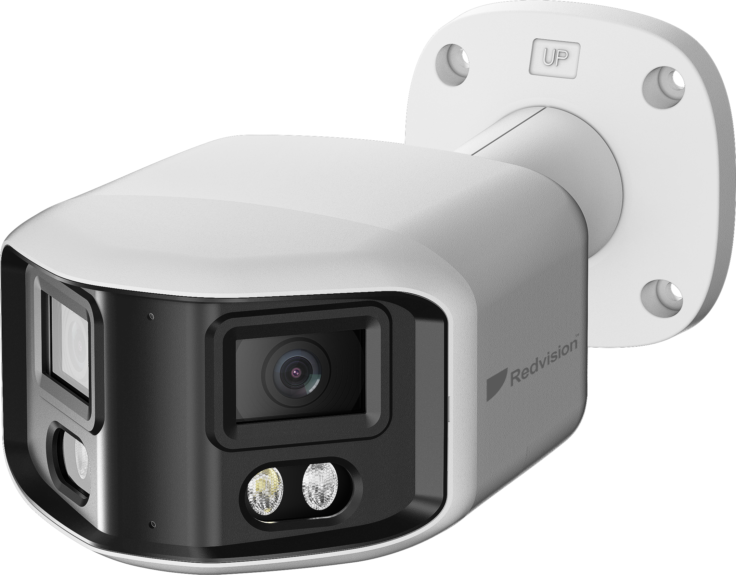

Knight Scene 80 Panoramic Camera

The Scene 80 Panoramic Camera utilises leading-edge sensor technology, with two Super low-light CMOS sensors seamlessly stitched together for high-quality, 180o wide angle panoramic images in daytime or night-time settings. PoE power means simple plug and play experience, with low power consumption (Max 11.5W, IR on). A tough, stylish housing completes the high-quality offering.

Adaptive IR and White Light Illumination

Integral IR provide up to 30m of IR range, ensuring any night-time activity is captured in full HD with stunning image quality. The Dual IR and White Light Knight Scene 80 IRWL is fitted with White LEDs to provide full colour night time images up to 20m. The White LEDs can be activated upon alarm to act as a visible deterrent to any intruders.

Fixed Zoom – Panoramic View

Dual, fixed-focal 2.8mm lens provide a panoramic 180o view, providing seamless wide-angle monitoring suitable for multiple applications.

Aluminium Body

A tough, solid cast aluminium casing results in the camera being well-protected against the elements and local environment, to IP66 standard. A rugged aluminium housing secures the camera whilst keeping the premises secure.

SD Card Recording

Built-in SD Card recording up to 256GB allows network edge-recording, making sure nothing is missed, even in the event of a network data outage. ONVIF Profile G compliance means the camera can work with a compatible VMS platform or NVR, to automatically interrogate and recover recorded footage, as soon as the network connection is restored.

ONVIF Compliant

ONVIF Profile S, G and T compliance offers compatibility with countless VMS platforms and NVRs. A H.265 streaming option means high-quality images at lower network bandwidth and hard-disk storage.

Additional Features

Multi-object detection, including human and vehicle, and Smart Events allow users to tailor cameras to suit each individual scene, optimising recording time for only events or information that really matters to you.

Simple Installation

3D positioning allows users to find that perfect spot to view exactly what’s required.

Microphone and Speaker

A built in microphone and loudspeaker allow users to operate two way audio to sites at a click of a button.

Key Features

  • 2 x 1/2.8” Progressive Scan CMOS, 5MP Sensors
  • Maximum Output 8MP (4608×1728) @ 15 fps
  • 180-degree Wide Angle Panoramic Image
  • Dual IR & White Light
  • PoE for Simple Plug and Play Connection
  • Super Low-Light Performance
  • Easy Positioning
  • Cast Aluminium Body
  • ONVIF Profile S, G & T Compliant
  • Intelligent Video Analytics
  • Audio In/ Out
  • Built in Microphone and Speaker
  • IP66

KNIGHT SCENE 80 PANORAMIC

8MP 180-Degree Panoramic Bullet Camera

RVK SE80 IRWL
Product Code Product Description
RVK-SE80-IRWL KNIGHT SCENE 80 180° 8MP Panoramic Bullet Camera, Dual 2.8mm Fixed Lens, 30m IR, 20m White Light
CAMERA
Image Sensor Dual 1/2.8” Progressive Scan CMOS
Max. Resolution 4608(H) × 1728(V)
Electronic Shutter Auto/Manual, 1/5 to 1/100,000s
Min. illumination Colour: 0.01 Lux @ (F1.6,AGC ON) B/W: 0.001 Lux @ (F1.6,AGC ON), 0 Lux with light on
Day & Night Auto (ICR)
IRWL Distance IR distance up to 30m, White lights distance up to 20m
IRWL On/Off Control Auto/Manual
Pan/Tilt/Rotation Range Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚
LENS
Lens Type Fixed-focal lens, Dual lens: 2.8mm
Iris Fixed Iris
Focal Length 2.8mm
F Number F1.6
Field of View H: 180°, V: 63°
VIDEO
Streaming Capability 2 Streams
Main Stream Splicing mode: 4608×1728 @15fps Multi-channel mode: 2592×1944, 2592×1520, 1920×1080, 1280×720 @15fps,
Sub Stream Splicing mode: 1536×576 @15fps Multi-channel mode: D1, VGA, CIF, QVGA @ 15fps
Bit Rate Control CBR / VBR
Bit Rate Splicing mode: Stream1: 500Kbps to 16Mbps Stream2: 200Kbps to 8Mbps Multi-channel mode: Stream1: 500Kbps to 12Mbps Stream2: 100Kbps to 6Mbps
Region of Interest Support
Smart Encode – Bandwidth Optimisation Supported
Image Adjustment Brightness/ Sharpness/ Contrast/ Saturation adjustable
White Balance Auto/Manual
Day/Night Setting Auto, Day, Night, Time
White Balance Auto/Manual
Day/Night Setting Auto, Day, Night, Time
Noise Reduction 2D/3D DNR
Wide Dynamic Range True WDR
Image Enhancement HLC, BLC, Defog
S/N Ratio 55dB
Privacy Masking Supported
SMART EVENT
Multi-Object Detection Face, human & vehicle detection
Smart Events Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, People counting Support alarm triggering by specified target types (human and vehicle)
AUDIO
Compression G.711, RAW_PCM
Bit Rate 64Kbps (G.711), 128Kbps (RAW_PCM)
NETWORK
Protocols IPv4/IPv6, RTSP/RTCP/RTP, TCP/UDP, HTTPS, DHCP, DNS, DDNS, PPPOE, UPnP, IGMP, IGMP, FTP, NTP, STMP, 802.1x, SNMP
Interoperability ONVIF (Profile S, G & T), SDK, CGI
Streaming Method Multicast
Max. User Access 10 Users
Web Viewer <IE11, Chrome, Firefox
Language English, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English
INTERFACE
Network Interface 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface 1ch Input, 1ch Output
Built-in Microphone Yes
Built-in Speaker Yes
Alarm Interface 1ch Input, 1ch Output
Reset Button Supported
SD Card Slot Built-in, up to 256GB
ELECTRICAL & PHYSICAL
Power Supply 12VDC (-15%~+25%)/ POE (IEEE 802.3af)
Power Consumption Max 11.5 W
Operating Temperature -30°C to 60°C
Operating Humidity Less than 90% RH
Ingress Protection IP66
Certifications CE/FCC
Casing Aluminium
Dimensions 227.7 × 110 × 80 mm
Net Weight 0.82 kg
