KNIGHT CAPTURE 40
4MP ANPR Bullet Camera, 8~32mm Motorised Lens, 80m IR
KNIGHT CAPTURE 40

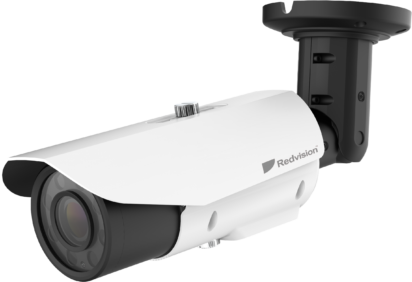

Knight Capture 40 ANPR Camera
The Knight Capture 40 ANPR camera harnesses advanced imaging and recognition technology, featuring a high-performance 1/1.8" progressive scan Sony CMOS sensor that delivers 4MP resolution at up to 50/60fps. Designed specifically for automatic number plate recognition (ANPR) applications, it integrates an intelligent AI-powered LPR algorithm capable of recognising number plates at speeds of up to 120km/h. The camera is equipped with an 8–32mm motorised zoom lens with auto focus to ensure precise capture at varying distances.
AI-Powered ANPR & Smart Recognition
Utilising advanced AI technology, the Knight Capture 40 offers accurate license plate recognition, even in high-speed environments. The camera supports up to 4,000 whitelist and blacklist number plates for real-time monitoring and control. Wiegand protocol compatibility allows seamless integration with access control systems for automated entry or alerts.
Enhanced Infrared Performance
Smart IR illumination offers an impressive range of up to 80m, automatically adjusting intensity based on zoom and scene content to ensure optimal clarity in all lighting conditions.
Robust Motorised Zoom
An 8–32mm motorised lens with Smart Auto Focus enables easy setup and fine-tuning, ensuring plate capture remains sharp at both close and extended distances—day or night.
Durable, Weatherproof Design
Housed in a rugged, cast aluminium body rated to IP66 and IK10, the Knight Capture 40 is built to withstand tough environments and physical impact. A secure and sleek form factor provides maximum protection without compromising aesthetic appeal.
Audio Integration & Edge Recording
With a built-in microphone and speaker, plus 1 audio input and 1 audio output, the Knight Capture 40 enables full two-way audio functionality for enhanced situational awareness. Edge recording is supported via a built-in SD card slot, accommodating up to 1TB of storage for local video archiving and network failure resilience.
ONVIF Compliant
Compatible with ONVIF Profiles S, G, and T, the Knight Capture 40 integrates easily with leading VMS platforms and NVRs. Support for H.265 encoding ensures high-quality image transmission with efficient use of bandwidth and storage.
Additional Features
Advanced video analytics, smart encoding, motion detection, and region of interest (ROI) settings allow for scene-specific optimisation—ensuring recording and alerts are focused on the most relevant activity.
Simple, Flexible Installation
A 3D positioning bracket makes mounting and alignment straightforward, while an adjustable sunshield helps eliminate glare in a wide range of lighting conditions.
Key Features
- 1/1.8” Progressive Scan CMOS, 4MP Sensor
- PoE for Simple Plug and Play Connection
- ANPR Max Recognition Speed of 120km/h
- Up to 4,000 Blacklist and Whitelist
- Supports Wiegand, Connectable with Access Control System
- Motorised Zoom Lens with Smart Auto Focus, 8~32mm Lens
- Easy Positioning
- Cast Aluminium Body
- ONVIF Profile S, G & T Compliant
- 80m Adaptive IR Integral LEDs
- Intelligent Video Analytics
- Audio In/ Out
- Adjustable Sun and Rain Visor
- IP66
KNIGHT CAPTURE 40
4MP ANPR Bullet Camera and Accessories
| Product Code | Product Description |
|---|---|
| RVK-C40-IR | KNIGHT CAPTURE 40 ANPR CAMERA, 1/1.8” CMOS, 4MP ANPR Bullet Camera, 8-32mm Motorised Lens, 80m IR |
| Product Code | Product Description |
|---|---|
| RVK-C-JB | Junction Box for Knight Capture Cameras |
| Product Code | Product Description |
|---|---|
| RVK-POLE1 | Pole Clamp for Knight Series Cameras |
| CAMERA | |
| Image Sensor | 1/1.8” Progressive Scan CMOS |
| Max. Resolution | 4MP (2560×1440) |
| Electronic Shutter | Auto/Manual, 1/5 ~ 1/100,000s |
| Min. illumination | Colour: 0.0025 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
| Day & Night | IR cut filter |
| S/N Ratio | 55dB |
| Wide Dynamic Range | True WDR |
| Angle Adjustment | Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚ |
| LENS | |
| Lens Type | Motorised Lens, Motorised Focus |
| Iris | Auto Iris |
| Focal Length | 8 ~ 32 mm |
| F Number | F1.6 |
| Field of View | 8 to 32 mm - H: 41.1° to 14°, V: 23° to 7.9° |
| ILLUMINATOR | |
| Supplement Light | IR |
| Light Control | Auto / Manual |
| Illumination Distance | Up to 80m |
| LPR | |
| Vehicle Speed | Up to 120km/h |
| Country Region Supported | Europe: UK, Italy, Netherlands Middle East: Oman, Saudi Arabia, Africa: South Africa Asia-Pacific: China, China Taiwan, Thailand, Vietnam, India, Indonesia Malaysia, Singapore America: Chile, USA (Customisable others) |
| White / Black List | Up to 4,000 records |
| LPR Smart Search | Supported |
| INTELLIGENT ANALYTICS | |
| Intelligent Analysis | Intrusion, Single line crossing, Double line crossing, Wrong-way detection, and Smart motion detection Support alarm triggering by specified target types (vehicle) |
| VIDEO AND AUDIO | |
| Streaming Capability | 3 Streams |
| Stream / Frame Rate | Stream1: 2688×1520, 1920×1080, 1280×720 @50/60 fps Stream2: D1, VGA, CIF @ 25/30 fps Stream3: VGA, CIF, QVGA @ 25/30 fps |
| Bit Rate Control | CBR / VBR |
| Bit Rate | Stream1: 200 kbps to 16 Mbps Stream2: 100 kbps to 6 Mbps Stream3: 100 kbps to 3 Mbps |
| Region of Interest | Off/On (8 areas, Rectangle) |
| Smart Encode | Supported |
| Audio Compression | G.711 A-law, G.711 μ-law, RAM PCM |
| Audio Bit Rate | 64 Kbps (G.711), 128 Kbps (RAW_PCM) |
| IMAGE | |
| Image Adjuustment | Brightness, Sharpness, Contrast, Saturation adjustable |
| Mirror | Supported |
| White Balance | Auto / Manual |
| Day / Night Setting | Auto, Day, Night, Time |
| Noise Reduction | 2D / 3D DNR |
| Image Enhancement | HLC, BLC, Defog, WDR |
| Privacy Masking | 4 areas |
| EVENT | |
| Alarm Triggers | IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection |
| Event Actions | Alarm record, Alarm output, Wiegand output, FTP upload, SMTP upload, Audible alarm output |
| NETWORK | |
| Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
| Interoperability | ONVIF (Profile S/T/G/M), SDK, CGI |
| User / Host Level | Up to 10 users, 3 levels: Administrator, Operator, Media user |
| Security | IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x |
| Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
| INTERFACE | |
| Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Audio Interface | 1ch Input, 1ch Output |
| Alarm Interface | 1ch Input, 2ch Output |
| RS-485 | 1 RS-485 |
| Wiegand Interface | 1 Wiegand (26-bit, SHA-1 26-bit, 34-bit, and NEWG 72-bit) |
| SD Card Slot | Built-in, up to 1 TB |
| Reset Button | Support |
| GENERAL | |
| Language | English, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English |
| Power Supply | DC12V (-15% to +25%)/PoE (802.3af) |
| Power Consumption | Max 13.2W |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP66 |
| Impact Rating | IK10 |
| Certifications | CE-EMC (EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-6-4:2019, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A2:2021) FCC (FCC 47 CFR 15, Subpart B, ANSI C63.4-2014) |
| Casing | Aluminium |
| Dimensions | φ110 × 356.3 mm |
| Net Weight | 1.5 kg |
