VEGA 2052 rugged camera

The Redvision VEGA™ 2052 camera is part of the VEGA™ housings range, with a camera module already fitted. This gives installers the opportunity to buy a complete, rugged camera solution.

ONVIF Integration

The VEGA™ camera options provide seamless, network integration. They are ONVIF S compliant and have SDK integration protocols developed for most leading manufacturers’ control equipment or video management software (VMS) systems.

The VEGA™ rugged housing

The Redvision VEGA™ is a fixed camera housing, which augments Redvision’s rugged, product portfolio. The housing seals against dirt, moisture and dust ingress. It allows an optimal combination of fixed cameras and lenses to be used in tough, outdoor environments.

Custom Options

The VEGA™ housing and camera can be customised for increased temperature range, colour, extra marine finish, branding and wiper.

Please contact Redvision for more information: +44(0)1420 448 448

Key Features

  • 2MP Sony™ Exmor™ Low Light Sensor
  • 3.5 ~ 12mm motorised zoom lens
  • Smart IR - up to 70m
  • Audio - 1ch in/out
  • Wide Dynamic Range (WDR)
  • Video analytics
  • Region of interest (ROI)
  • Edge storage - SD Card up to 128GB
  • Alarm triggers - motion/network loss
  • ONVIF compliant Profile S 2.6
  • H.265 compression

Applications

  • Perimeter protection
  • Water treatment plants
  • Hazardous Environments: Nuclear, Seafronts, Harbours, Shipping
  • Military: Army, Navy
  • Hostile Environments: Problem housing estates, High crime areas
  • High Security: Police HQ, Embassies, Airports
  • Traditional CCTV: Town Centres, Car Parks, Railway Stations, Shopping Malls, Schools, Hospitals
  • Rapid deployment, Police vehicles, Building site security, Perimeter security
Product Code Product Description
VEGA-2052-WALL Fully cable managed camera, including wall bracket; 12V DC/ POE, 2MP Sony Exmor lowlight sensor, 3.5-12mm motorised lens and autofocus. Ruggedised marine finish.
Product Code Product Description

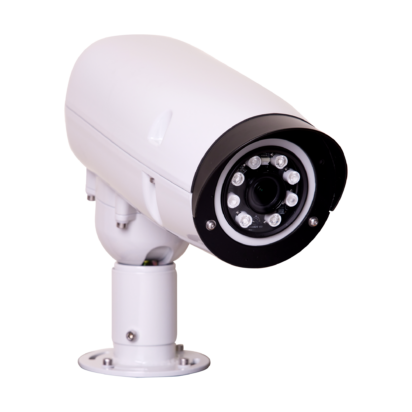

VEGA-2052-PED Fully cable managed camera, including pedestal bracket; 12V DC/ POE, 2MP Sony Exmor lowlight sensor, 3.5-12mm motorised lens and autofocus. Ruggedised marine finish.
Product Code Product Description
VEGA-2052-NB Fully cable managed camera, 12V DC/ POE, 2MP Sony Exmor lowlight sensor, 3.5-12mm motorised lens and autofocus. Ruggedised marine finish - bracket not included

Product Datasheets

Redvision VEGA™ rugged camera housing and camera options

Installation Guides
